1.0 GENERAL DESCRIPTION

1.1 Introduction

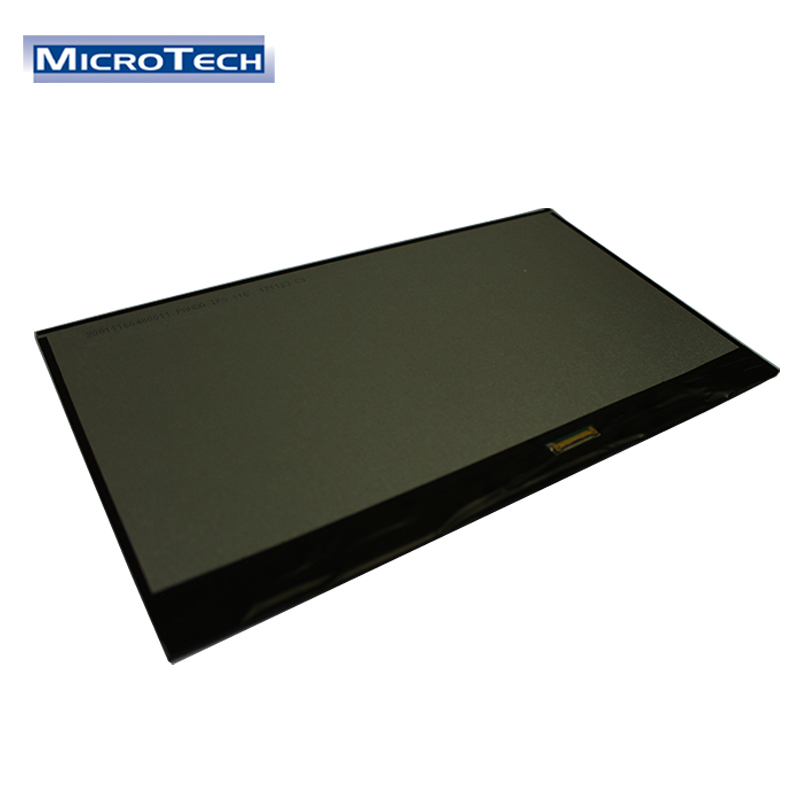

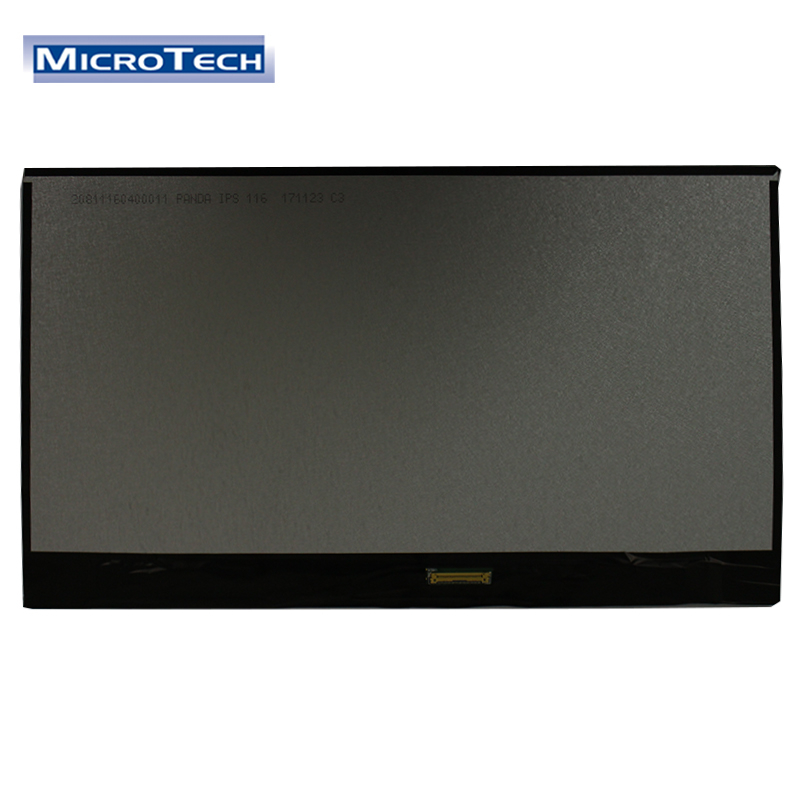

This module is a color active matrix LCD module incorporating Oxide TFT (Thin Film Transistor).It is composed of a  color TFT-LCD panel, driver ICs, a control circuit and power supply circuit. Graphics and texts can be displayed on a  1920×3×1080 dots panel with 262144 colors by using eDP (Embedded Display Port) Ver1.2 interface and supplying +3.3V  DC supply voltage for TFT-LCD panel driving. In this TFT-LCD panel, color filters for excellent color performance is incorporated to realize brighter and clearer  pictures, making this Module optimum for use in multi-media applications. Optimum viewings are in all directions. 9serial  4paralel LED structure. Backlight-driving LED controller is built in this Module. eDP  transfer rate specification: 2.7Gbps/2 lane. 1.2General information
